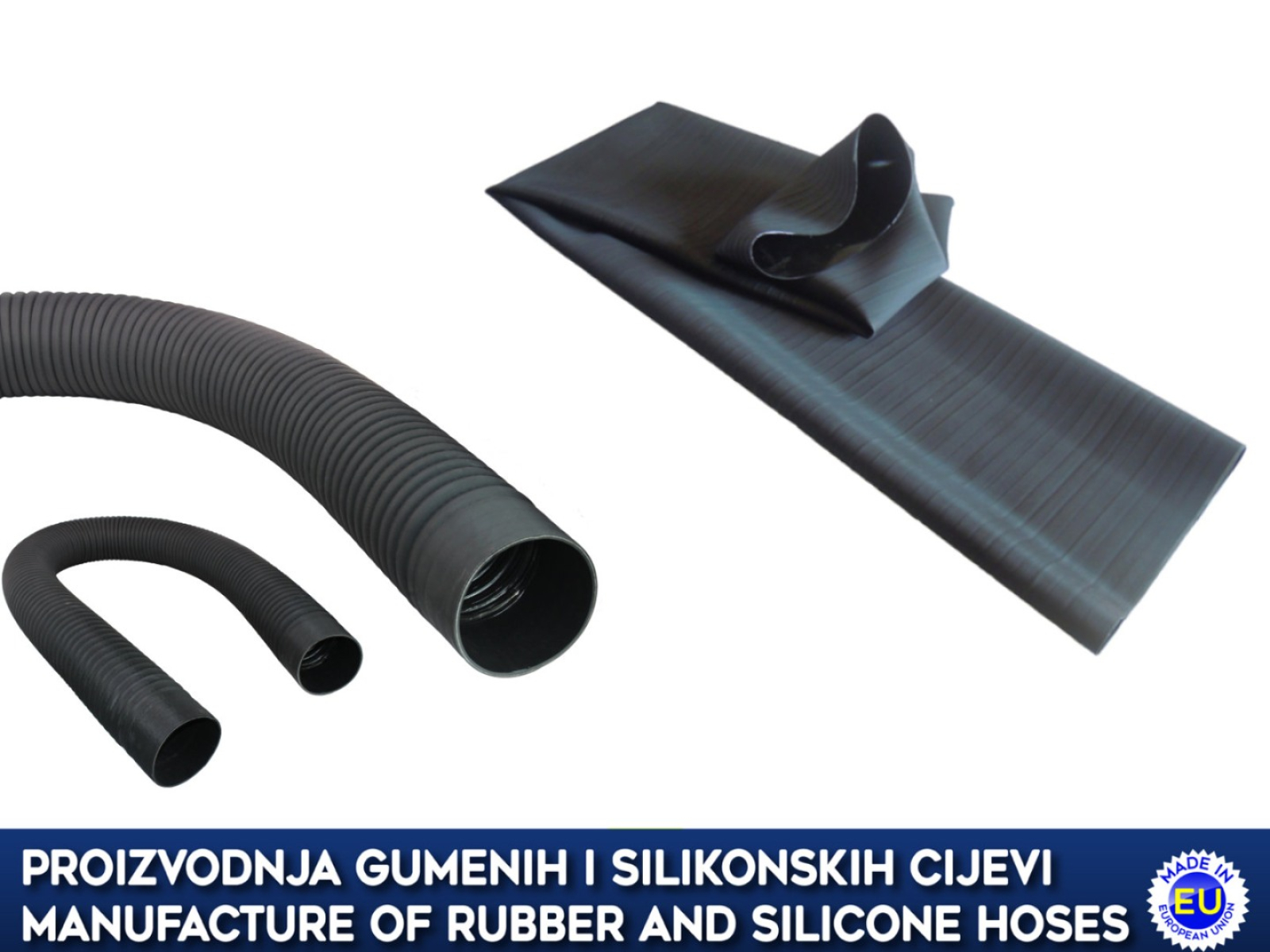

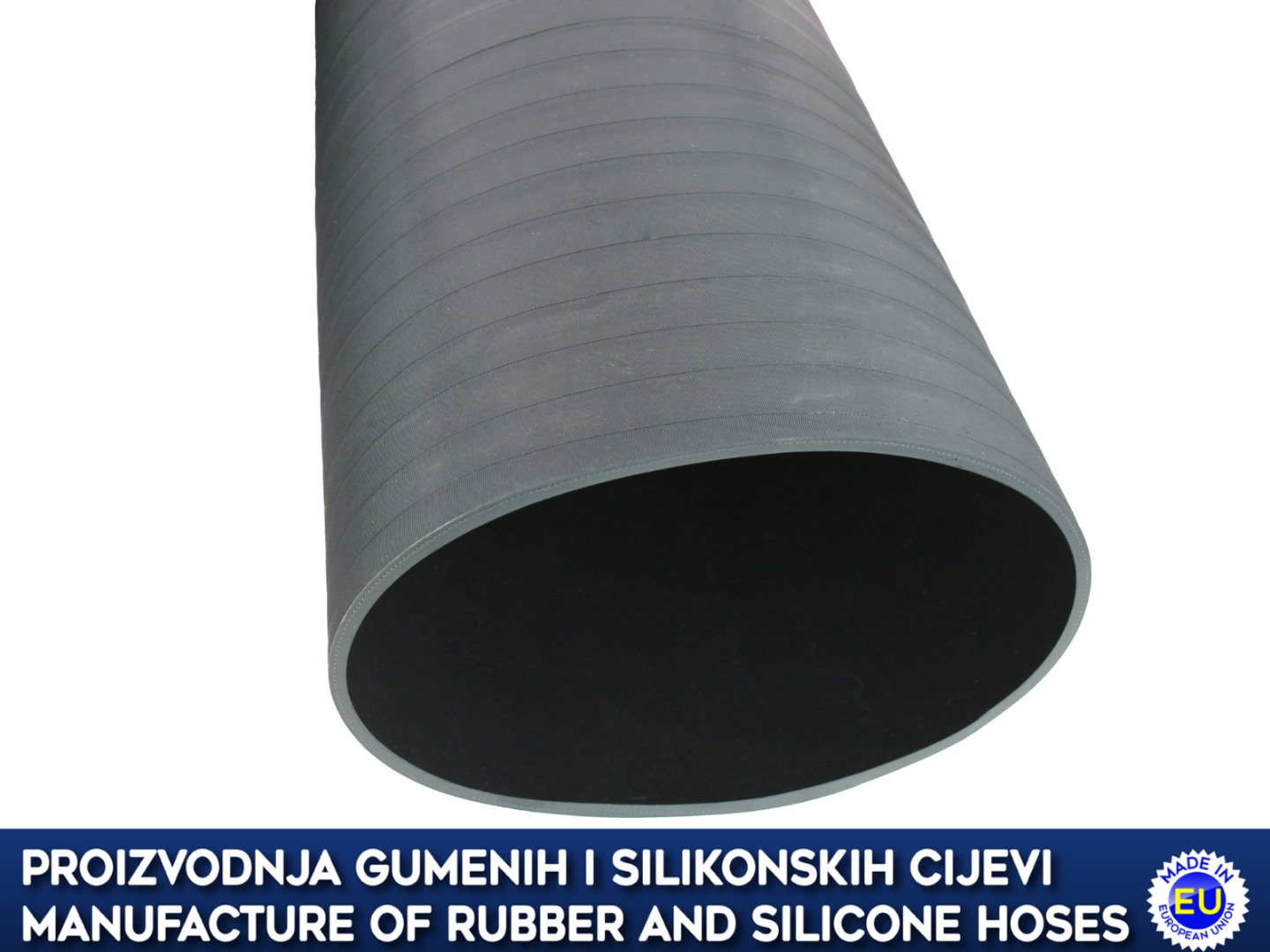

CONCRETE BASKET / SKIP HOSE
Na upit
Out of stock
Rubber hose with excellent resistance on abrasion, tear, UV, atmosphere, ozone aging. The hose is very flexible and easy for handling.
The hose is produced in several variants: with or without textile reinforcement / with or without a steel spiral (depending on the customer’s request).
Used for:

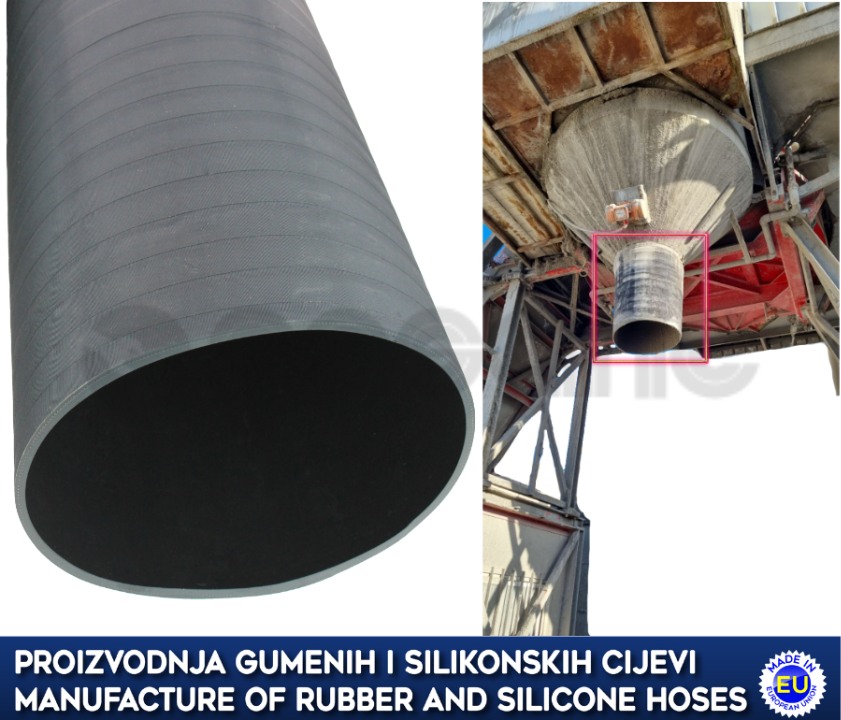

Drain/discharge concrete from concrete basket / skip, mixers, silos …
– For discharge of various powder or solid abrasive materials in various industrial branches.
These are standard dimensions: (we also have possibility to produce other inner/ outer dimensions by your request)
|
inner/ outer diameter mm |
inner/ outer diameter mm |
|
50 / 58 |
Ø 168 / 176 |
|
Ø 60 / 68 |
Ø 193 / 201 |
|
Ø 70 / 78 |
Ø 200 / 208 |
|
Ø 76 / 84 |
Ø 220 / 228 |
|
Ø 80 / 88 |
Ø 254 / 262 |
|
Ø 90 / 98 |
Ø 273 / 281 |
|
Ø 102 / 110 |
Ø 305 / 315 |
|
Ø 110 / 118 |
Ø 323 / 331 |
|
Ø 125 / 133 |
Ø 350 / 358 |
|
Ø 120 / 128 |
Ø 380 / 408 |
|
Ø 130 / 138 |
Ø 400 / 508 |
|
Ø 140 / 148 |
Ø 420 / 409 |
|
Ø 152 / 160 |
Ø 500 / 509 |
| Weight | 0,99 kg |
|---|
Related products

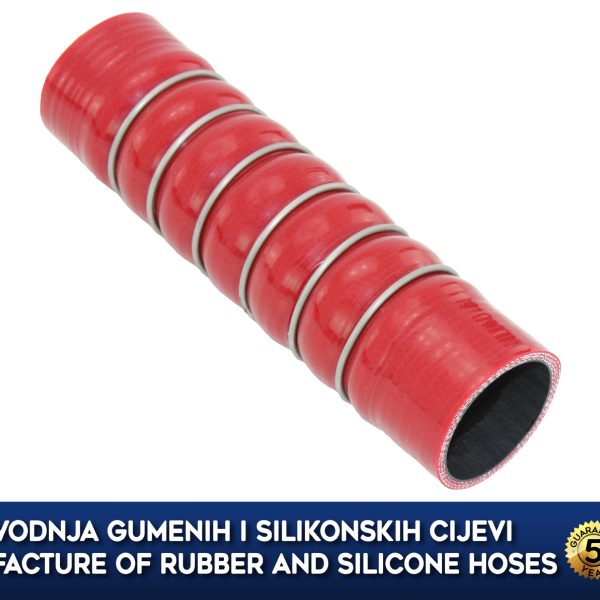

FORD C-MAX 1.6 D, PEUGEOT 508 1.6 HDI, crijevo intercoolera i turbine, AV616C646GD, 9685149780
In stock

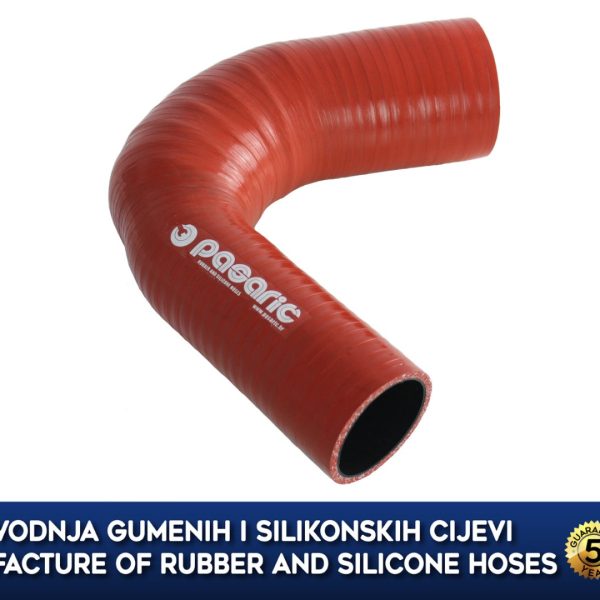

Replacement air hose VAN HOOL, 920921106
In stock
Replacement air intake hose FORD MONDEO / S MAX / GALAXY 2.0 TDCI, VOLVO V70 2.0 D, 6G916C700-AB, 6G916C700AB, 1492150, 1490848
In stock
Replacement hose from intercooler to intake manifold FIAT MULTIPLA 1.9 JTD, 46761659
In stock
Replacement intercooler turbo hose FIAT CROMA 1.9 JTD, 51756784
In stock
Replacement radiator hoses ZETTELMEYER 5002
In stock

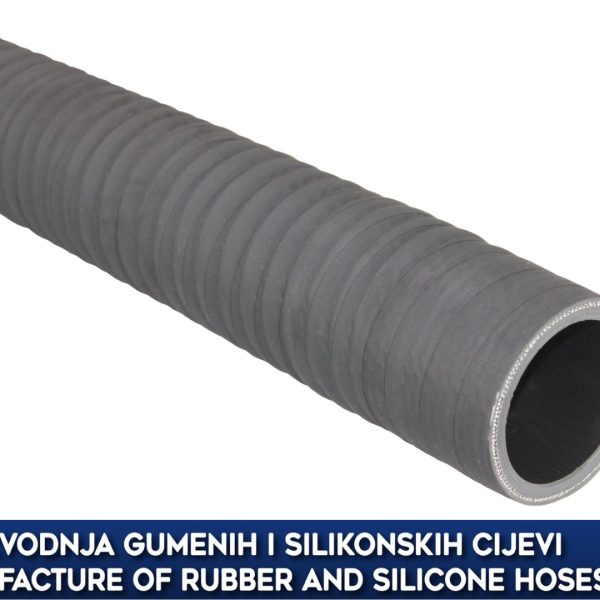

SUCTION / PRESSURE HOSES FOR ABRASIVE MEDIA
